Why reinforced concrete drafting still takes so long
A concrete building model may already contain the information the drafting team needs: levels, grids, beams, columns, walls, slabs, openings, and element relationships. Even so, the documentation phase often starts again in CAD.
Engineers and drafters still need to prepare floor plans, trace structural elements, place labels, draw frame views, create beam and column details, organize dimensions, and produce a file that can be reviewed by the team. That work is necessary, but much of it is repetitive.
The goal of a drafting automation process is not to remove review. The goal is to reduce the blank-page work that happens before review can even begin.
A faster process: model, generate, review, refine
StructaCAD is built around a practical drafting sequence:
structural model -> first-pass drawings -> editable DXF -> CAD review and cleanup.
The user can model directly or work from imported structural information, generate a drawing package, then continue the final presentation and checking process in AutoCAD or another CAD-compatible process.
This matters because most offices already have CAD standards, preferred layers, text styles, title blocks, and review habits. A useful automation tool should fit into that process instead of forcing everyone into a closed system.
Beam reinforcement from ETABS steel area
After concrete design in ETABS, StructaCAD can import the .e2k file containing required beam steel areas. That information is not treated as plain text: it is mapped by beam, span, and station so the program knows where top and bottom reinforcement belong.
Using that demand as the starting point, StructaCAD proposes practical reinforcement for beam and frame details. The goal is to satisfy required steel area, minimum reinforcement ratio, minimum bar spacing, maximum bar diameter, and constructible detailing rules.
Slab plan drawings

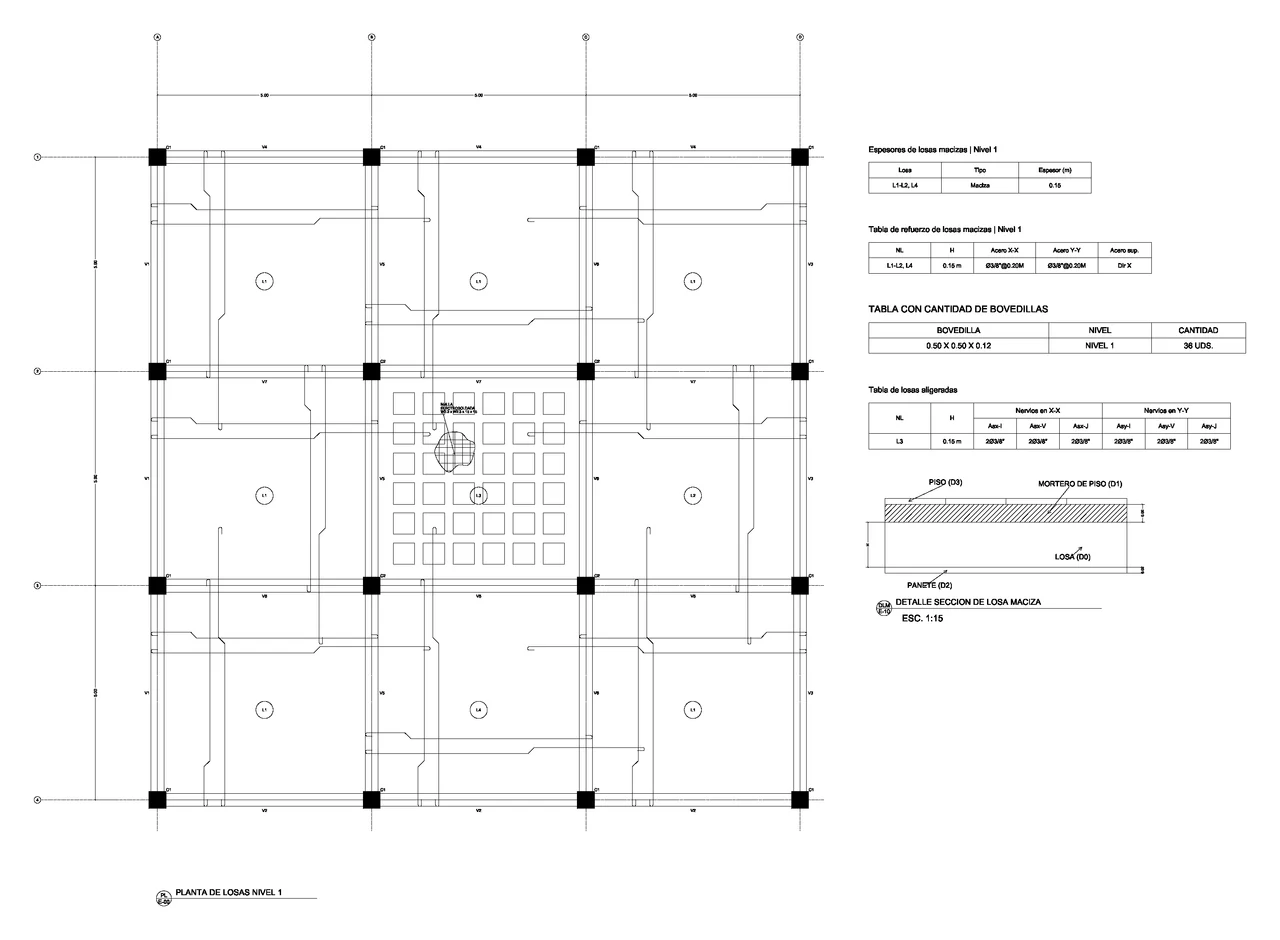

StructaCAD also helps generate slab plan drawings from the structural model. The output can show slab panels, labels, thicknesses, main reinforcement direction, and reinforcement information according to the slab system.
For solid slabs, the program organizes bottom mid-panel reinforcement, top reinforcement over supports, and additional reinforcement where needed. For ribbed or one-way slab systems, it keeps the plan readable while leaving the DXF ready for review and adjustment in AutoCAD.
Concrete, masonry, and non-bearing walls
When the model comes from ETABS, not every wall should be treated the same in drawings or quantities. StructaCAD lets users classify imported walls as structural concrete walls, masonry walls, or non-bearing walls.
This classification helps each wall receive the right treatment in documentation: concrete walls can be part of the structural system and details, masonry walls can be separated for takeoff and estimating, and non-bearing walls can remain identified without being confused with primary resisting elements.
What a first-pass DXF package should include
A useful reinforced concrete DXF export should provide more than a single plan view. The package should give the user enough structured drafting output to start reviewing immediately.
- Structural floor plans with grids, dimensions, beams, columns, walls, slabs, and labels

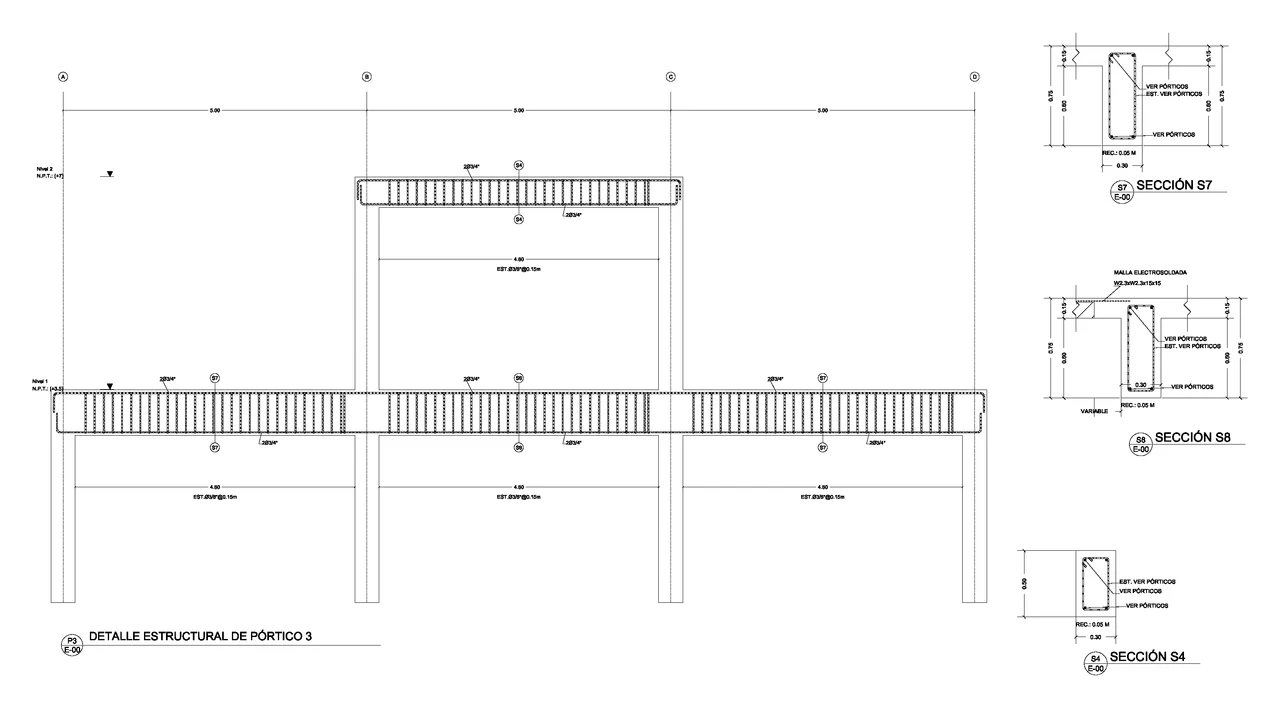

- Frame or elevation views that show levels, columns, beams, and reinforcement callouts

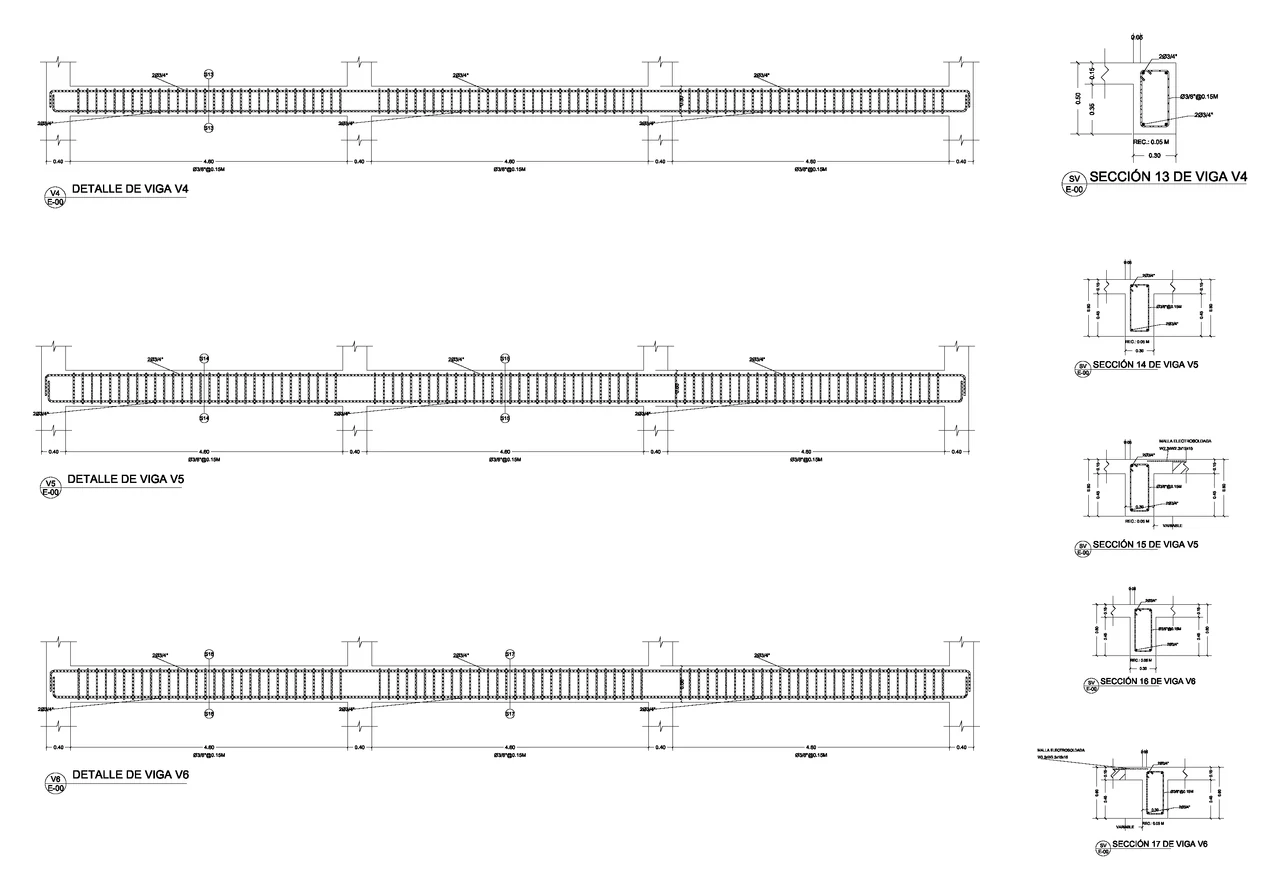

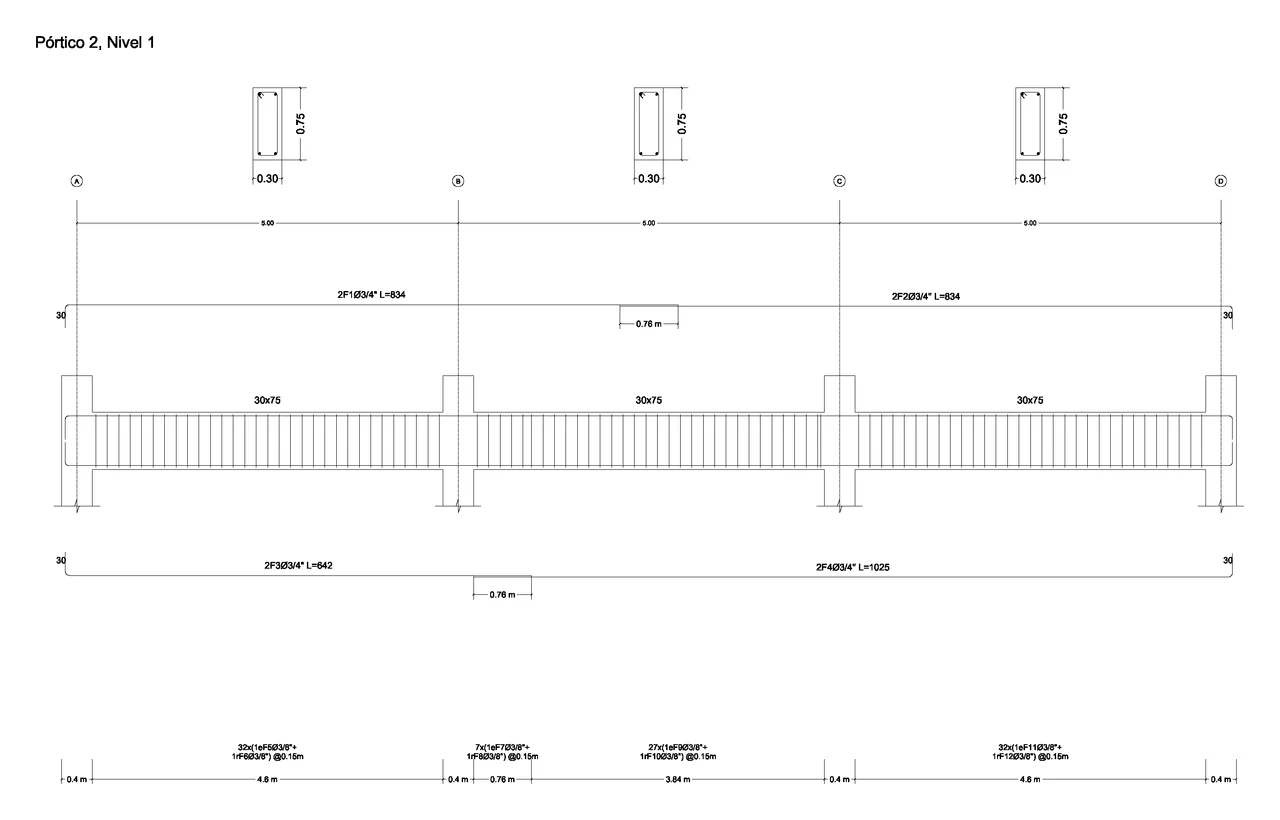

- Beam details and beam sections

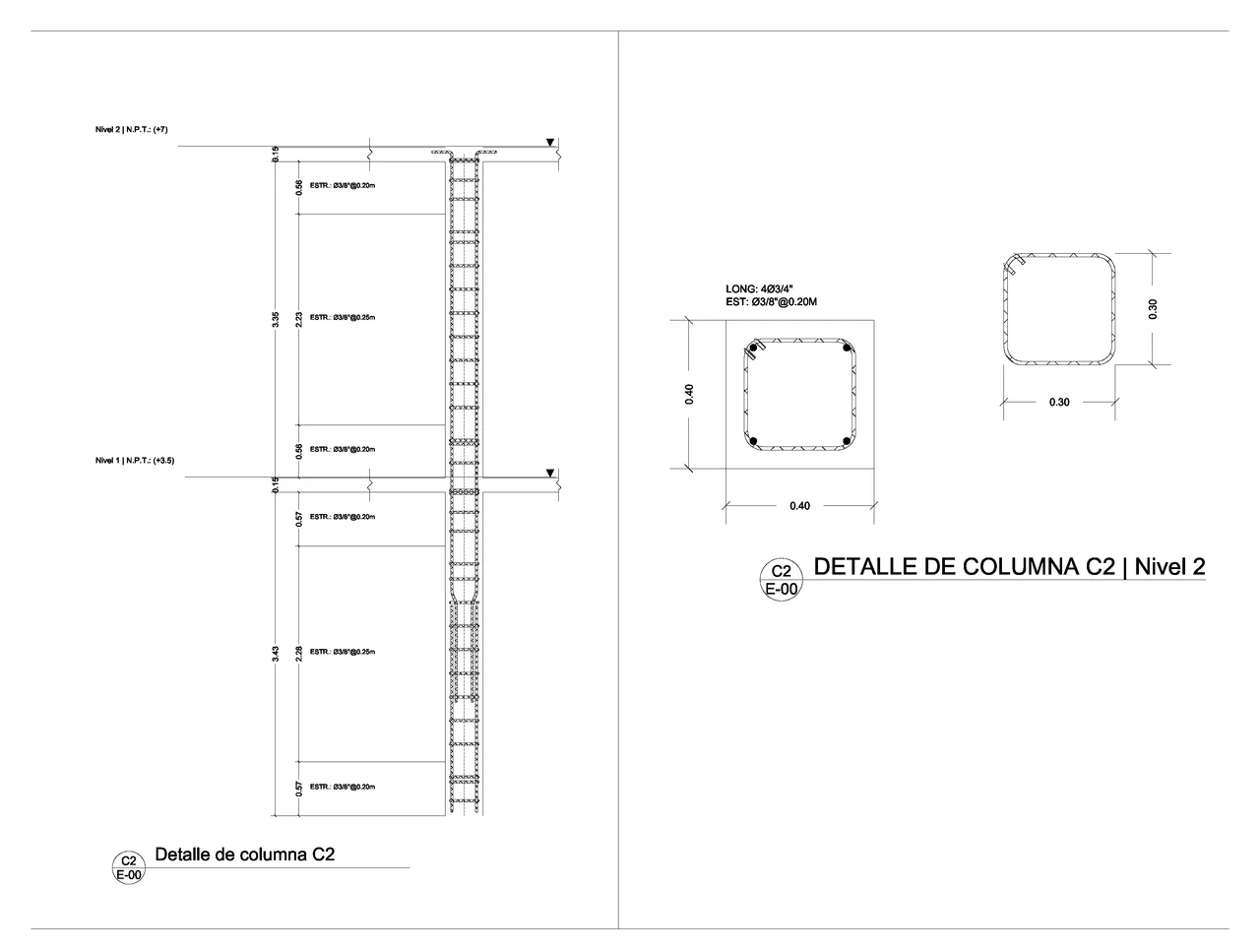

- Column details and column elevation continuity by level
- Slab and wall information where applicable

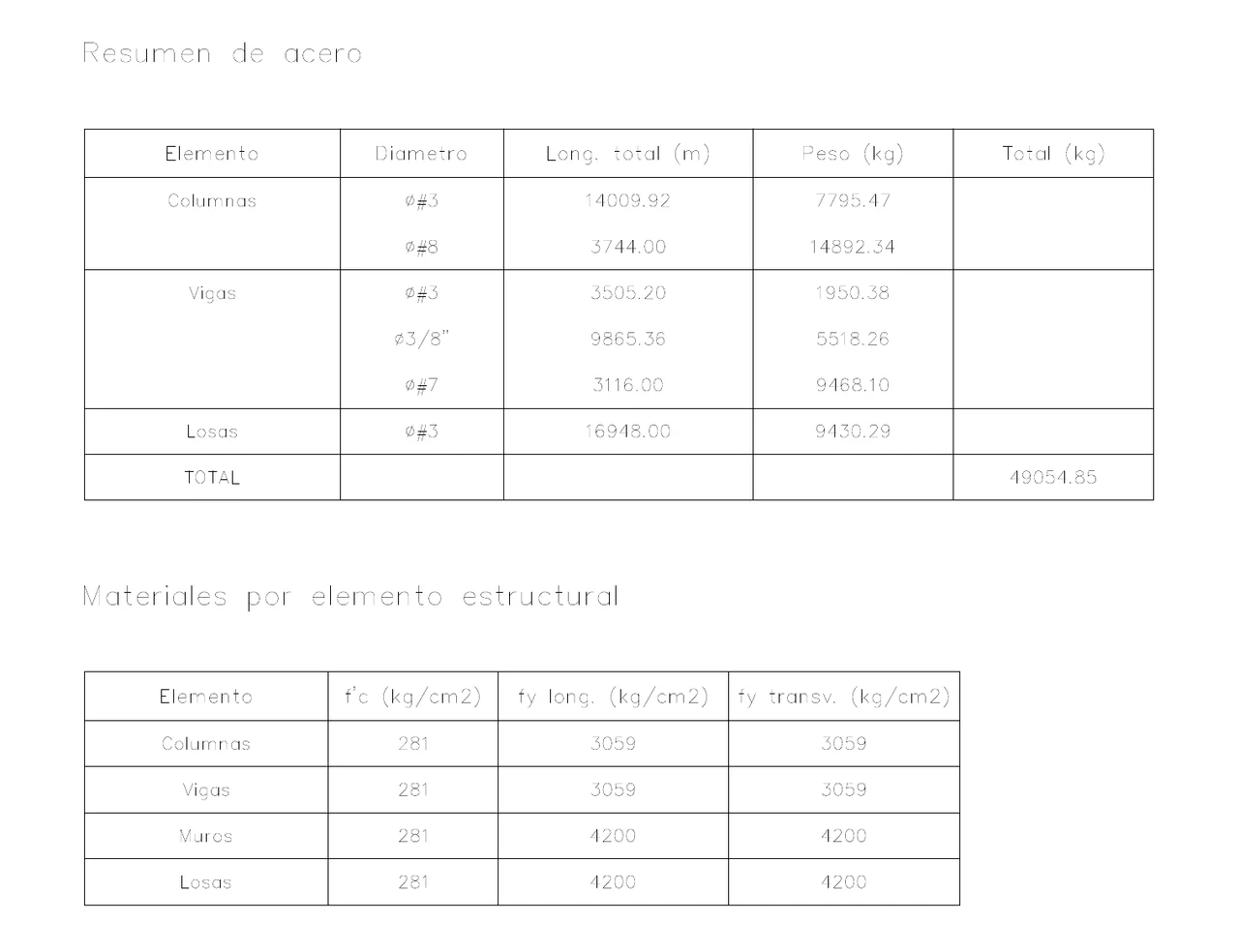

- Quantity-related outputs that can support estimating and review
- Editable geometry that can be cleaned up in AutoCAD
The output should be treated as a drafting baseline. It should save time by placing the repetitive information, while still leaving space for engineering judgment, office standards, and project-specific corrections.
See the process directly
Open StructaCAD and test a first-pass DXF export.
Use the live workspace to model or import a structure and generate editable CAD deliverables.
Why editable DXF is useful
DXF keeps the process flexible. Engineers and drafters can open the generated file in AutoCAD or CAD-compatible software, inspect the geometry, adjust layers, modify annotations, and continue the drawing process using their normal standards.
That flexibility is important because structural drawings are not only technical outputs. They also depend on local conventions, office standards, client expectations, code notes, sheet layout, and presentation style.
A first-pass DXF export is valuable when it reduces repetitive drafting while still remaining editable and reviewable.
Who this process is for
StructaCAD is especially relevant for users who already work around reinforced concrete documentation and want a lighter way to get from model information to CAD output.
- Independent structural engineers
- Small structural offices
- Drafting teams that still produce AutoCAD deliverables
- Students learning structural documentation
- Teams that need plans, frame views, beam details, column details, quantities, and editable DXF output
What still requires engineering review
StructaCAD does not replace a qualified structural engineer, professional judgment, code checks, detailing decisions, or project-specific review.
The generated drawings should be checked for geometry, scale, reinforcement assumptions, member labels, dimensions, constructability, local requirements, and office standards before being used as part of a real deliverable.
The safest way to think about StructaCAD is as a documentation accelerator: it helps generate a structured first draft, then the engineer or drafter reviews and refines it.
Where StructaCAD is going
StructaCAD is being improved around real drafting needs: cleaner DXF exports, better element representation, more readable plans, better beam and column details, quantity outputs, and unit price analysis.
The long-term direction is a practical bridge between structural modeling and structural documentation:
model the structure -> generate drawings -> extract quantities -> prepare pricing -> export editable CAD deliverables.
